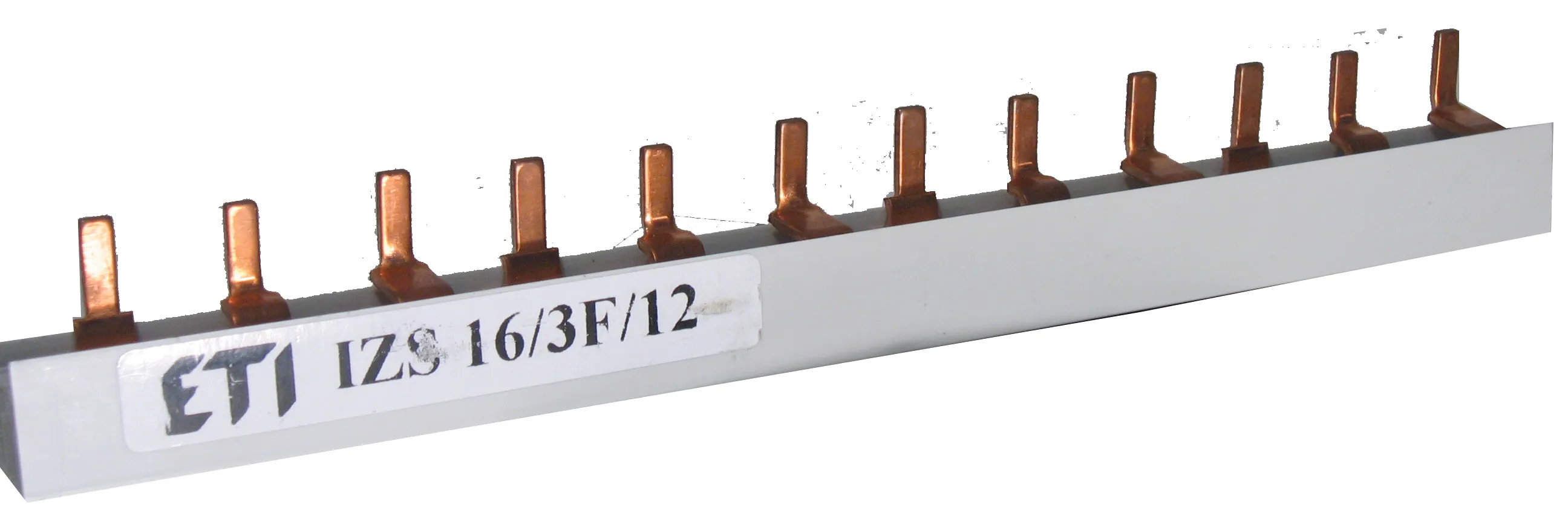

Insulated busbar IZS16/3F/12 (0,21) 002921112
Specifications
- ETI Code:
- 002921112
- Description:
- IZS16/3F/12 (0,21)
- Class name:
- Insulated busbar
- sort_order:
- 7
- id_level1:
- 1844
- l1_sort_order:
- 3599
- l2_sort_order:
- 3781
- l3_sort_order:
- 3788
- l4_sort_order:
- 3789
- l5_sort_order:
- 3794
- l6_sort_order:
- 3795
- Function:
- Section rails
- Type:
- Pin type
- Rated current (A):
- 100
- Rated voltage (V):
- 500 V AC
- Rated cross section:
- 16
- Lenght in modules:
- 12
- Number of phases:
- 3
- Type accessories:
- Section rails
- For use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Documents
Logistic Data
Product
- EAN code for a single product
- 5907625307765
- Net weight of the product
- 0.13 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 20
- EAN code for a basic packaging
- 5907625307772
- Basic packaging weight
- 2.6 kg
Transport packaging
- Transport packaging quantity
- 180
- EAN code for a transport packaging
- 5907625307789
- Transport packaging weight
- 23.4 kg
- Pallet quantity
- 6120
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Rated voltage
- 500 V AC
- Rated current
- 100
- Number of phases
- 3
- Module width
- 17.8mm
- Cross section
- 16mm²
- Length
- 320mm
- Rated permanent current Iu
- 100A
- Type of electric connection
- Pin
- Insulated
- Yes
