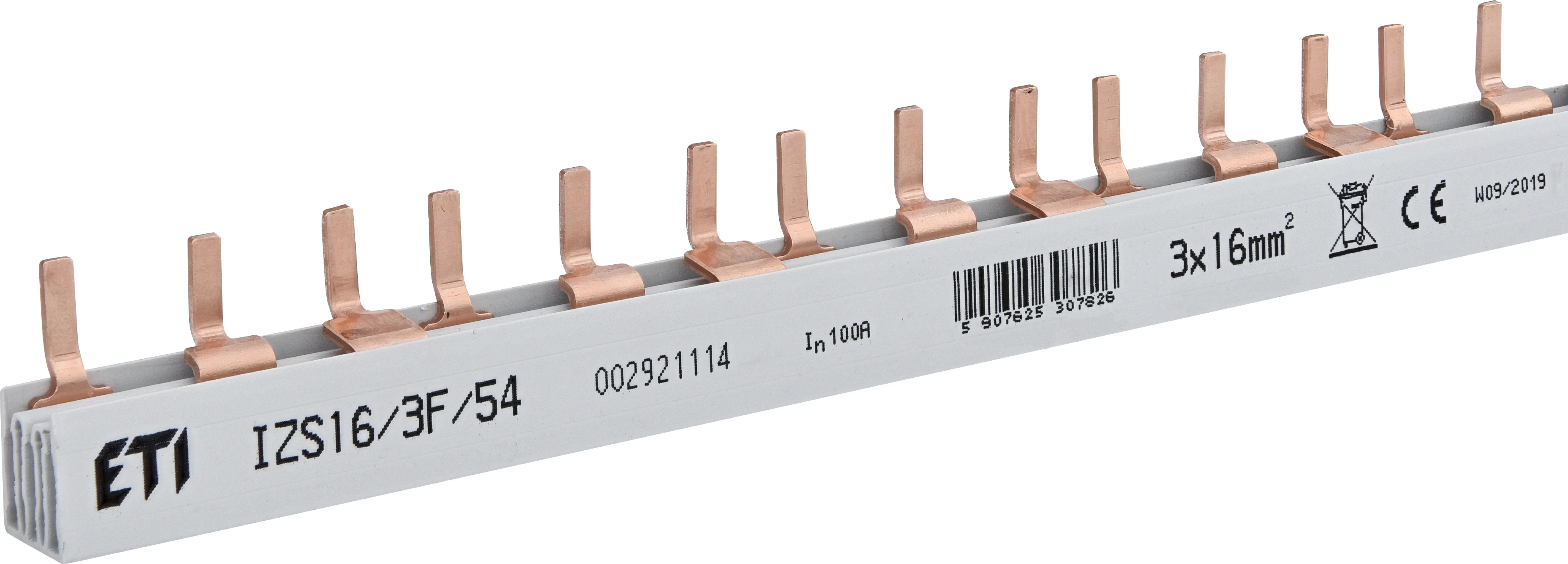

Insulated busbar IZS16/3F/54 (1m) 002921114
Specifications
- ETI Code:
- 002921114
- Description:
- IZS16/3F/54 (1m)
- Class name:
- Insulated busbar
- Function:
- Section rails
- Type:
- Pin type
- Rated current (A):
- 100
- Rated voltage (V):
- 500 V AC
- Rated cross section:
- 16
- Lenght in modules:
- 54
- Number of phases:
- 3
- Type accessories:
- Section rails
- For use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.7 kg
- Customs tariff
- 85389099
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5907625307826
- Basic packaging weight
- 0.7 kg
Level 2 Packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 5907625307833
- Transport packaging weight
- 14 kg
- Pallet quantity
- 1140
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Rated voltage
- 500 V AC
- Rated current
- 100
- Number of phases
- 3
- Module width
- 17.8mm
- Cross section
- 16mm²
- Length
- 1000mm
- Rated permanent current Iu
- 100A
- Type of electric connection
- Pin
- Insulated
- Yes
