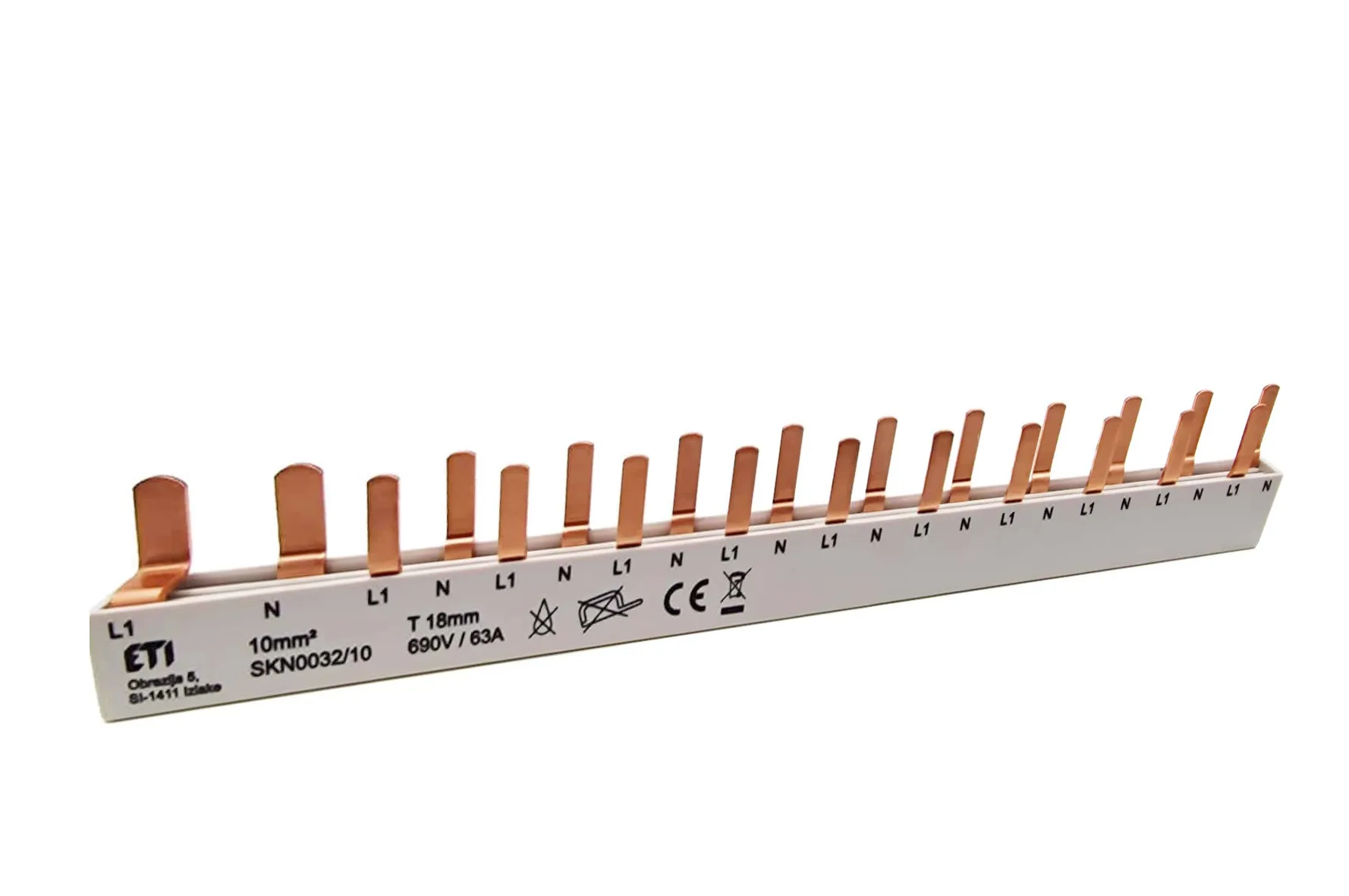

Insulated busbar SKN0032/10 002921155
Specifications
- ETI Code:
- 002921155
- Description:
- SKN0032/10
- Class name:
- Insulated busbar
- sort_order:
- 3
- id_level1:
- 1844
- l1_sort_order:
- 3599
- l2_sort_order:
- 3781
- l3_sort_order:
- 3788
- l4_sort_order:
- 3789
- l5_sort_order:
- 3796
- l6_sort_order:
- 3797
- Function:
- Section rails
- Type:
- SKN type
- Number of phases:
- 2
- Type accessories:
- Section rails
- For use with:
- EFI2+10xETIMAT 1N
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400077172
- Net weight of the product
- 0.16 kg
- Customs tariff
- 85369040
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895642275
- Transport packaging weight
- 1.65 kg
- Pallet quantity
- 18370
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Number of phases
- 2
- Cross section
- 10mm²
- Rated permanent current Iu
- 63A
- Type of electric connection
- Pin
- Insulated
- Yes
