Fuse - base D01 E14 16A N 3p 002221031
Specifications
- ETI Code:
- 002221031
- Description:
- D01 E14 16A N 3p
- Class name:
- Fuse - base
- Mounting type:
- TH 35
- Product group:
- LV-fuse base
- Size:
- D01
- Type:
- Without protection cover
- Number of poles:
- 3
- Rated current (A):
- 25A
- Rated AC voltage (V):
- 400V
- Rated DC voltage (V):
- 400V
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400030023
- Net weight of the product
- 0.182 kg
- Customs tariff
- 85389099
- logis_net_width
- 81 mm
- logis_net_height
- 54 mm
- logis_net_depth
- 47 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895007494
- Basic packaging weight
- 0.87 kg
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895283706
- Transport packaging weight
- 9.1 kg
- Pallet quantity
- 3250
ETIM Clasification
- Classification
- EC001644
- Class name
- D0-system fuse base
- Number of poles
- 3
- Construction size
- D01
- Material
- Porcelain
- Rated voltage
- 400V
- Rated current
- 25A

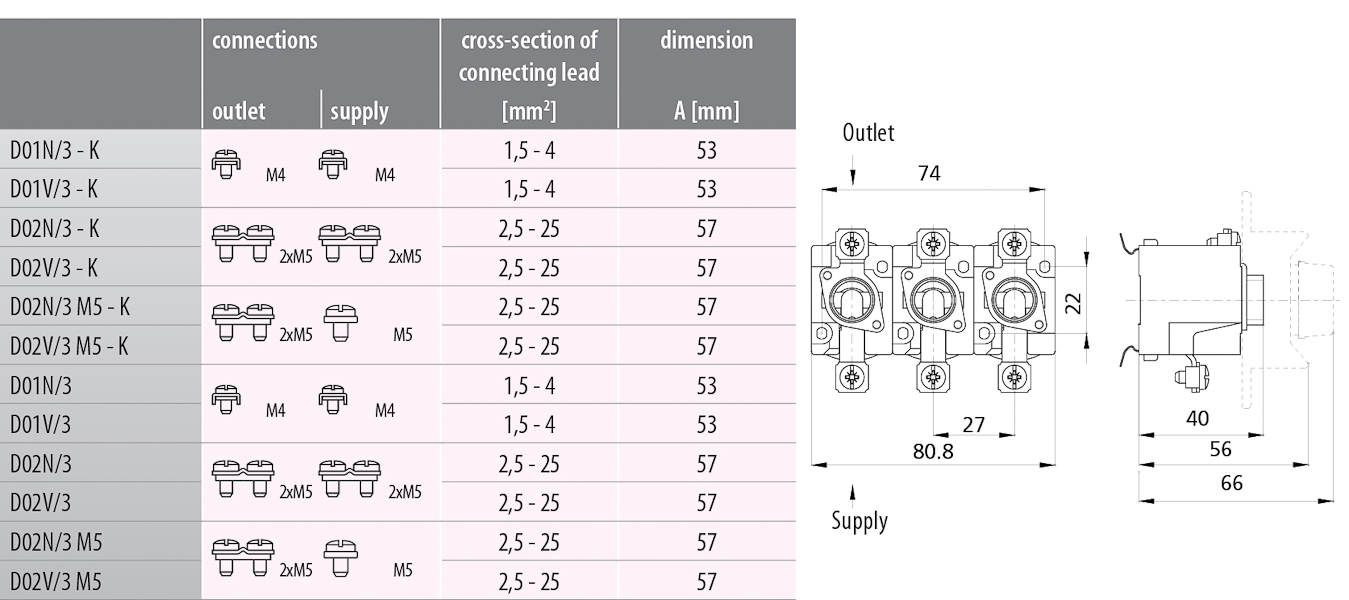

Images & Diagrams
